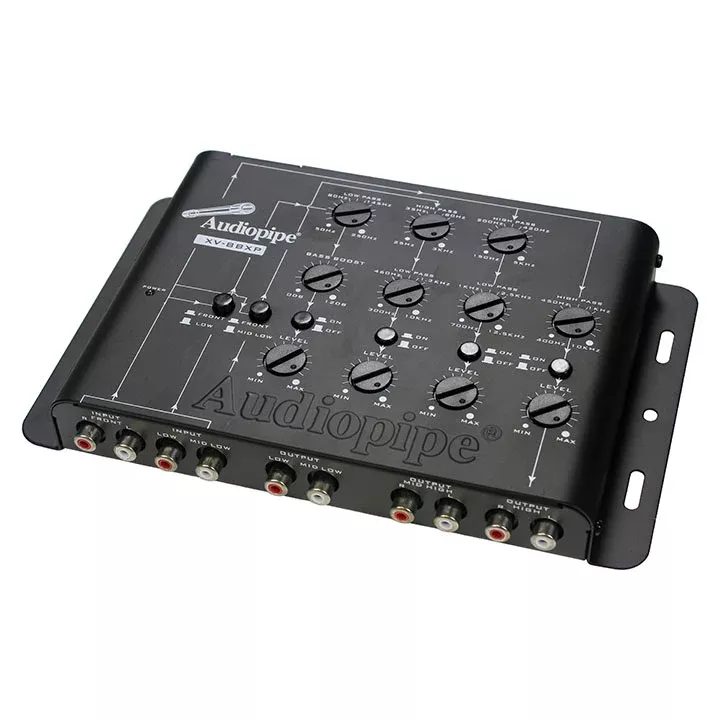

Audiopipe XV8BXP 4 Way Crossover with bandpass control

4 Way Crossover with bandpass control
High Pass: 400Hz0 I0KHz (12 dB/8)
High Pass: 150Hz-5KHz (12 dB/8)
Low Pass: 700Hz-12.5KHZ (12 dB/8)
High Pass: 25Hz-3KHz (12 dB/8)
Low Pass: 300Hz-10KHz (12 dB/8)
Low Pass: 50Hz-250Hz (12 dB/8)
Bass Boost: (25HZ-110Hz) (0~+12d8; 45Hz)
Maximum Voltage: Input: 4V: Output 9V
Signal/Noise Ratio:>90d8
Impedance: Input 10Kohms; Output: 500
T.H.D: <0.02%
Channels Separation:>50dB
Frequency Response: 20Hz-20KHz
Power: 10V-16V DC
Current Consumption: 200mA
Dimension: 8.9″x6.3″x1.3″
