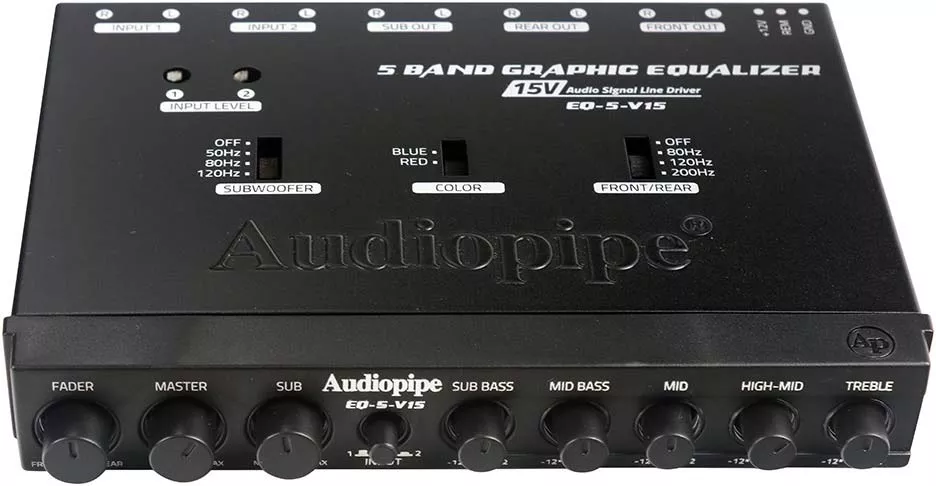

Audiopipe EQ5V15 5 Band Graphic EQ

5 Band Graphic Equalizer W/ Subwoofer Control
Output channels (left and right): Front/Rear/Subwoofer
Input channels (left and right): Input 1/Input 2
Input range of gain control (dB):>40
Maximum input voltage (V):>10
Input impedance (K Ohms):>20
Maximum output voltage (V):>15
Volume gain (dB):>40
-3dB low pass frequency (Hz): 50/80/120
-3dB high pass frequency (Hz): 80/120/200
Low pass/High pass slope/oct (dB): 12
Equalization frequencies: 45/150/500/2.2k/12k
Equalization cut or boost (dB): 12
Distortion at 1kHz – 1V (%): 0.01
Channel separation at 1kHz (dB):>80
Signal to noise ratio (dB):>100
Frequency resposne (Hz) (-1dB): 10- 50k
Universal Half-din Chassis for Ease of Installation
Subwoofer Output And Level Controls
Gold-Plated RCA Input Connectors
Three Stereo RCA Outputs
Change the backlight illumination to Cool Blue or Hot Red
