FEATURES:
Patented Bass Maximizer
Dash mount control
Bass restoration lighted display
Parametric bass control
PFM Subsonic Filter
Balanced inputs
Bass Output Control
INPUTS:
Preamp Inputs: 1 (2 channels)
Maximum Input Level: 15Vrms
Input Impedance: 10k ohms
OUTPUTS:
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 13.5Vrms
Output Impedance: 150 ohm
PERFORMANCE:
Total Harmonic Distortion: 0.003%
Frequency Response: 10Hz-100kHz
Signal to Noise: 110dB
CONTROL:
Remote In
GENERAL:
Power Supply: High Headroom PWM Switching
Current Draw: 150mA
Recommended Fuse Rating: 1A

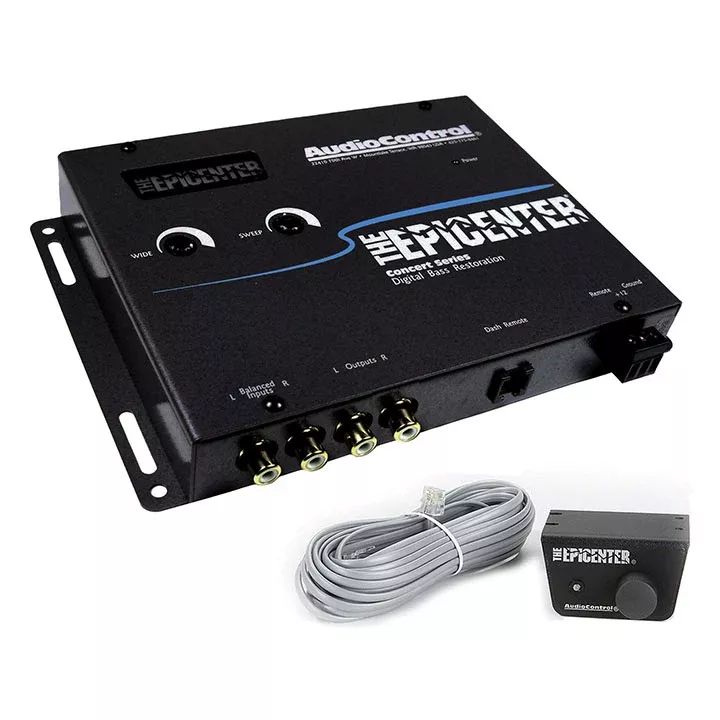

IN THE BOX: The Epicenter, ACR-1 Remote, Power Connector, Manual, Warranty
Dimensions: 8″W x 5.5″D x 1.2″H
